← Back to Multifunction Meters

MFM

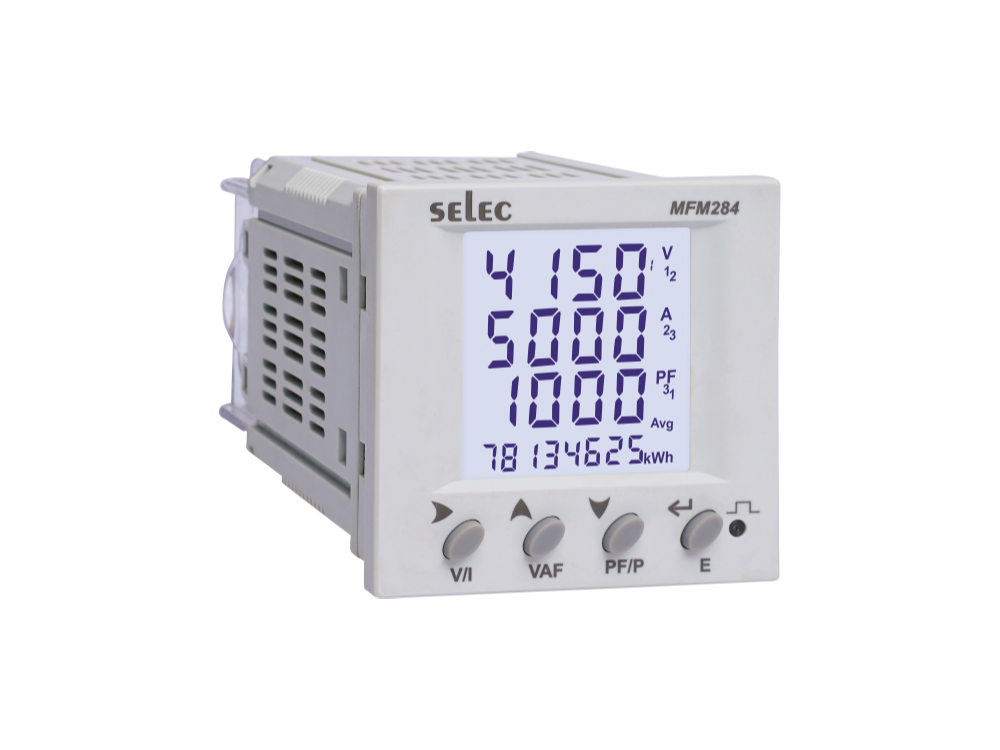

Selec MFM284

Compact Multifunction Meter

MFM284_image

Short Specs:-

Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems
11 to 300V (L-N), 19 to 519V (L-L) measurement
Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active, reactive & Apparent energy
Max / Min power Demand measurement
%THD upto 31st level, RS485 Communication MODBUS RTU

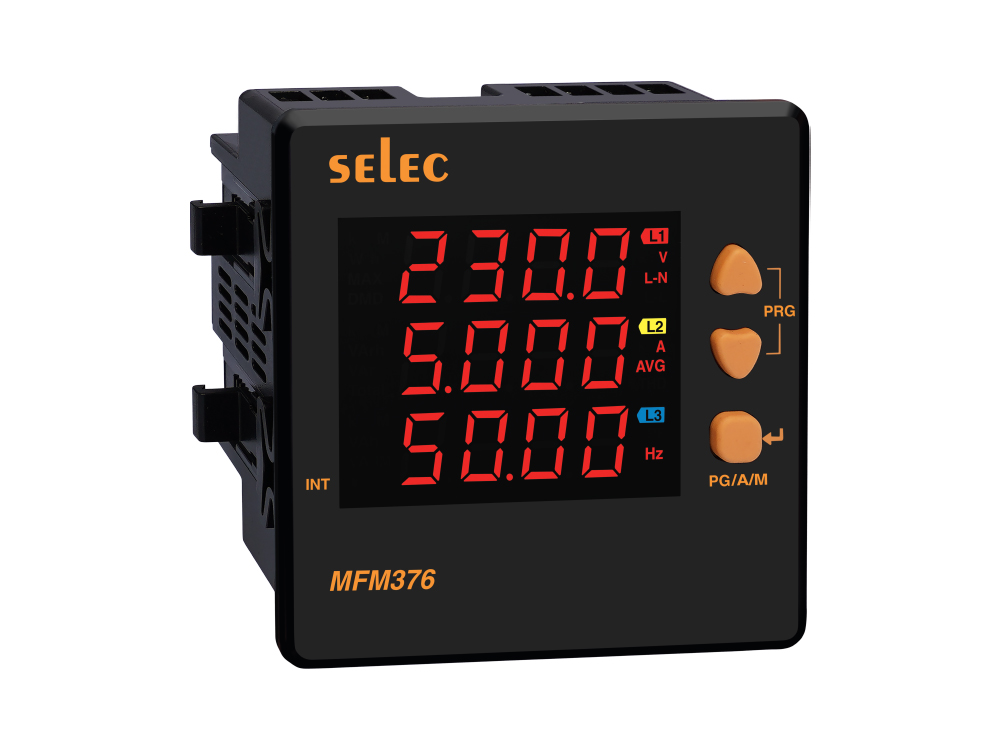

Selec MFM376

LED Multifunction Meter

MFM376_image

Short Specs:-

Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 4 wire systems
11 to 300V AC (L - N), 19 to 519V AC (L - L) measurement
Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, ±0.01% for PF, 1% for Power, Class 1 for Active, reactive & Apparent energy
Max / Min power Demand measurement, Import / Export Energy measurement
%THD upto 31st level, RS485 Communication MODBUS RTU (MFM376-C-CE)

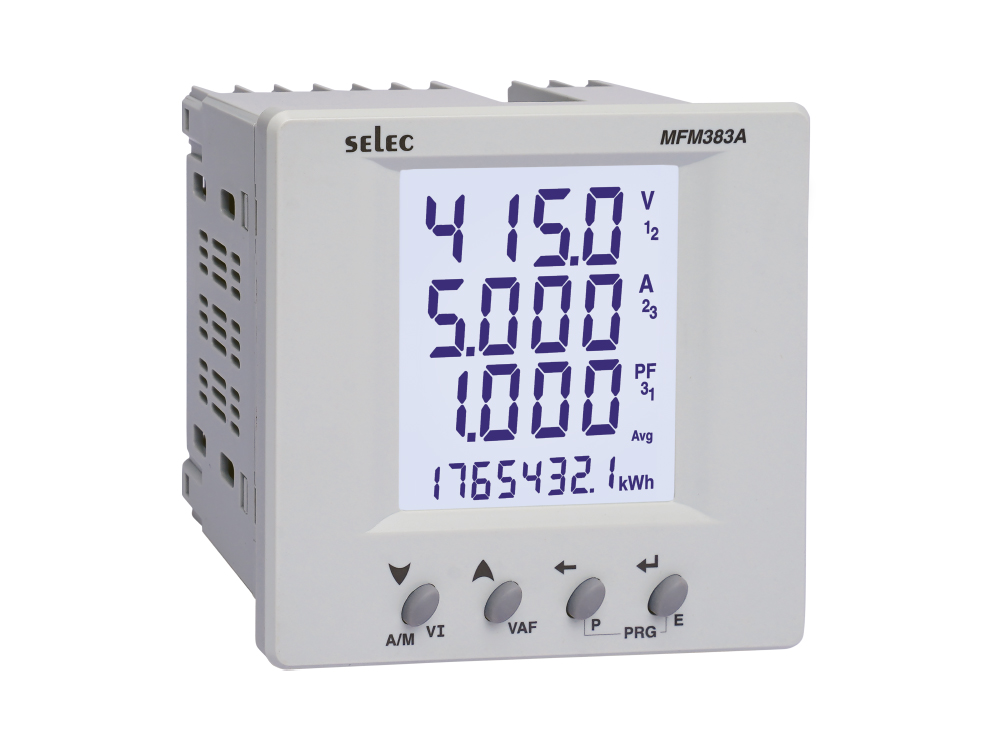

Selec MFM383A

Economical LCD Multifunction meter

MFM383A_image

Short Specs:-

Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems
11 to 300V (L-N), 19 to 519V (L-L) measurement
RS485 Communication MODBUS RTU (MFM383A-C-CE)
Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active,reactive & Apparent energy
CE RoHS certified

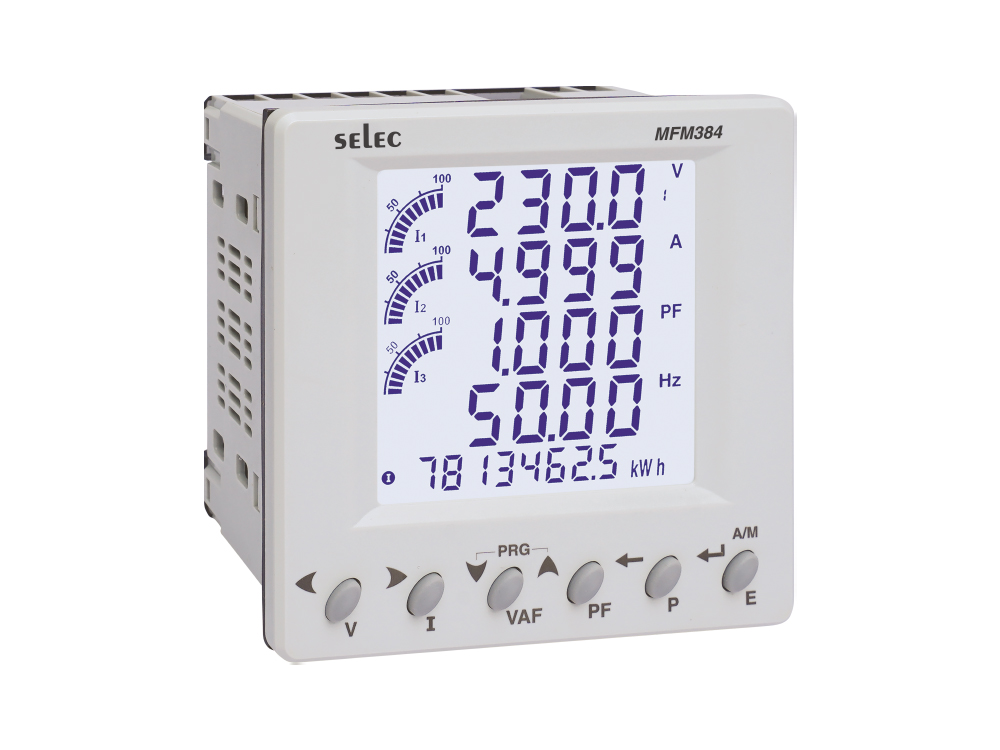

Selec MFM384

Multifunction Meter

MFM384_image

Short Specs:-

Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 3 wire, 3 phase 4 wire systems
11 to 300V AC (L - N), 19 to 519V AC (L - L) measurement
Max / Min power Demand measurement, Import / Export Energy measurement
%THD upto 31st level, RS485 Communication MODBUS RTU protocol
Accuracy Class 0.5S / Class 1

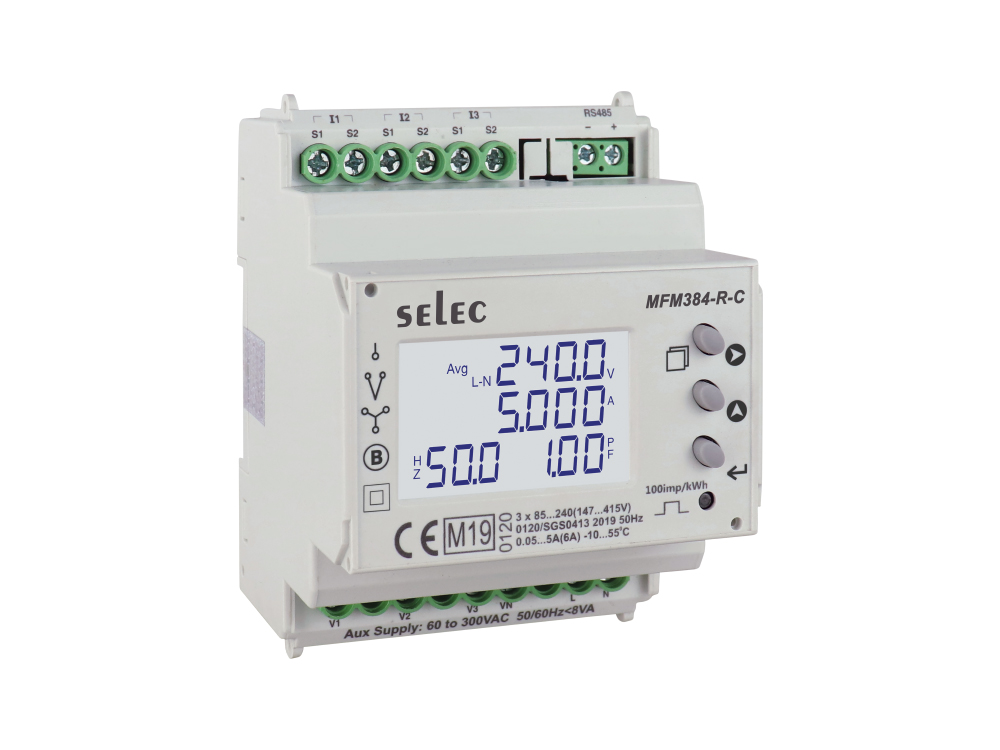

Selec MFM384-R-C

DIN RAIL Multifunction Meter

MFM384-R-C_image

Short Specs:-

Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 4 wire systems
11 to 300V AC (L - N), 19 to 519V AC (L - L) measurement
Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, ±0.01% for PF, 1% for Power, Class 1 for Active,reactive & Apparent energy
Max / Min power Demand measurement, Import / Export Energy measurement
RS485 Communication MODBUS RTU protocol

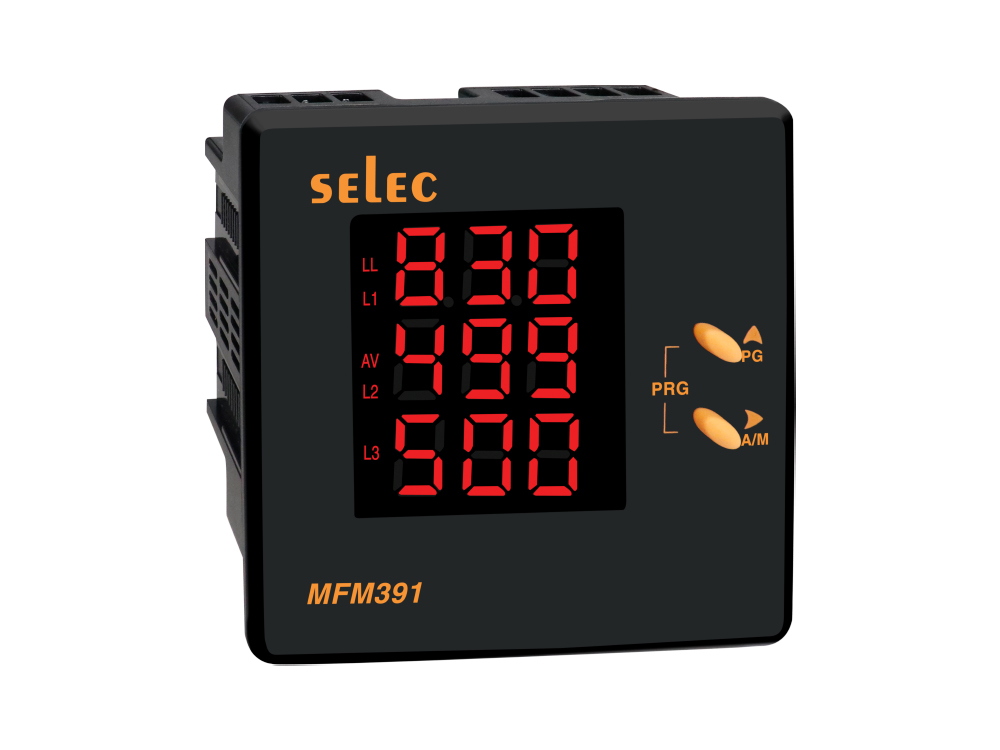

Selec MFM391

ECONOMICAL LED MULTIFUNCTION METER

MFM391_image

Short Specs:-

Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems
11 to 300V (L-N), 19 to 519V (L-L) measurement
Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active, Reactive & Apparent energy
RPM and Run Hour Measurement

+
