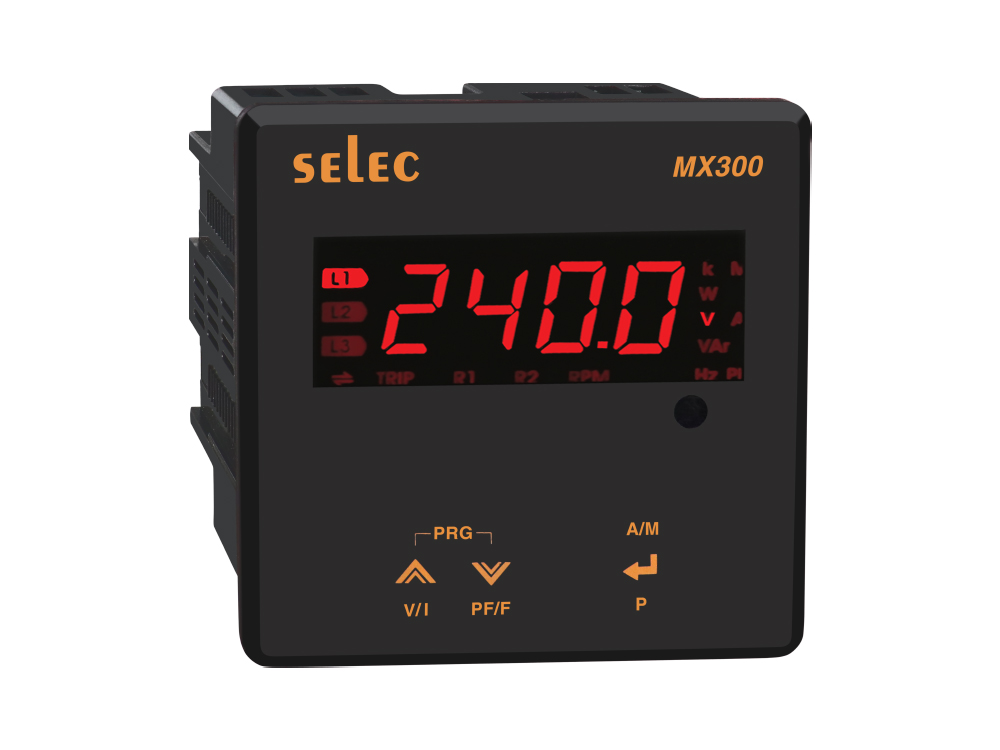

Selec MX300
LED multifunction meter, 1Ø, 96X96mm
- 1 phase measurement for voltage, current, power, power factor and frequency
- 20 to 519 V measurement.
- Accuracy of ± 0.5% of F.S.
- 3 Digit 7 segment LED display
- Built in relay for alarm RS485 and MODBUS RTU protocol for communication Panel mount Supply voltage of 85 to 300 V AC
Bulk Inquiries? Special Rates Available!
Specification Table
| Measuring Parameters | Voltage, Current, Power factor, Frequency, Power (Active, Reactive Apparent) (kW, W) |
| Accuracy | Voltage & Current : ±0.5% of Full scale, Frequency ± 1%, Active power ± 1%, Reactive power ± 2% |
| PT Secondary | 100V to 500V AC (Programmable for any value) |
| Supply Voltage | 85 to 300V AC / DC |
| PT Primary | 100V to 500kV (Programmable for any value) |
| Electrical Connection | 1Ø - 2W |
| CT Primary | 5A - 9999A (Programmable for any value) |
| CT Secondary | 5A fixed |
| Resolution | Voltage, Current & Power : Auto , Power factor : 0.001 |
| Display | Bright LED display with parameters integrated within display |
| Rated Input Current | Nominal 5A AC (Min- 40mA, Max- 6A) |
| Rated Input Voltage | 20 - 300V AC (L - N), 34 - 519V AC (L - L) |
| Digits | 4 digit 7 segment |
| Communication | RS485 MODBUS RTU protocol |
