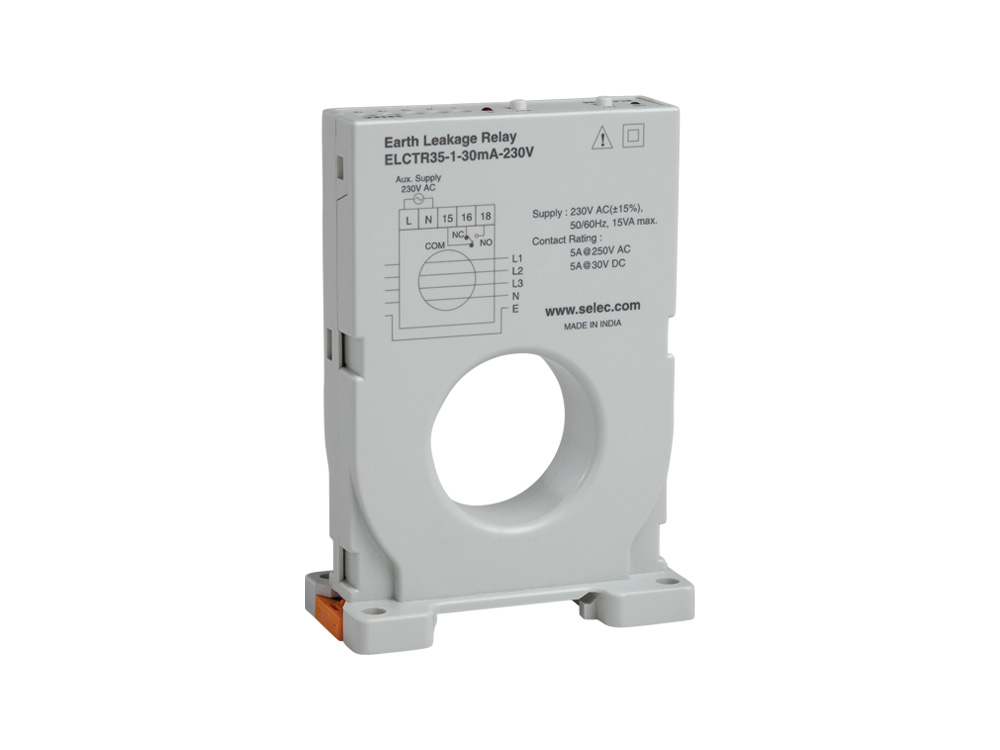

Selec ELCTR35-1-30mA
ELR with Inbuilt CBCT, 30mA Fixed
- 3 phase leakage current measurement device with inbuild (CBCT)
- Accuracy : 5% of input current
- 1 C/O (SPDT) output relay
- Trip setting: 75% of 30mA
- LED indications : Power supply and fault recognition
- Supply Voltage : 230V±15%
- CE certified
Bulk Inquiries? Special Rates Available!
Specification Table
| Output Rating | NO: 5A@250VAC, NC: 5A@30V DC |
| Size | 74mm |
| Accuracy | Trip: ±5% of Input Current, Time: ±5% of Response Time |
| Supply Voltage | 230V AC (±15%) |
| Mounting Type | DIN Rail Mount |
| Electrical Connection | 3Ø-4W, 1Ø-2W, 3Ø-3W |
| Trip Setting | 75% of 30mA |
| Time Ranges | Reset Time: Instantaneous |
| Certification | CE |
| Output Contact | 1 C/O (SPDT ) |
