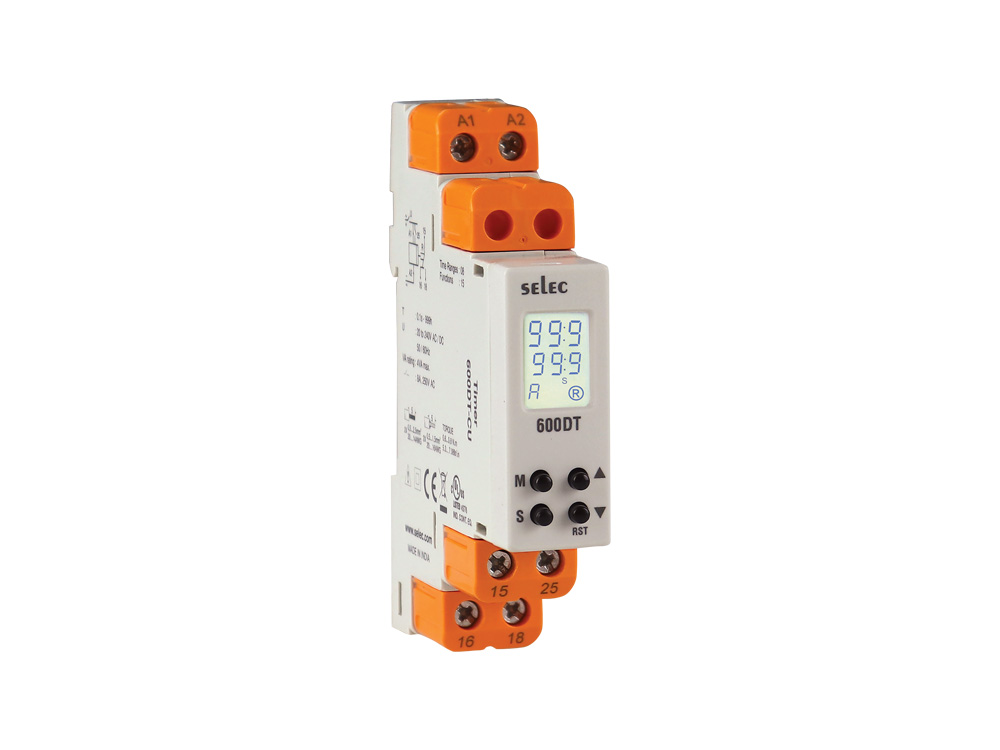

Selec 600DT-CU
15 FUNCTIONS, WIDE TIME RANGE, UNIVERSAL POWER SUPPLY
Varinat Details
Certification:CE, UL
Product Code:600DT-CU
Supply Voltage:20 to 240V AC / DC
- 15 Functions, 9 Time ranges
- Front key pad setting
- Universal supply voltage
- Slim, Space saving design
Bulk Inquiries? Special Rates Available!
Specification Table
| Counting Direction | Down |
| Supply Voltage | 20 to 240V AC / DC |
| Mounting Type | DIN Rail Mount |
| Accuracy | Setting:± 0.1 Of Set Time or ± 50m sec (Whichever Is Greater) For Y contact operation: + 100 m sec, Repeat: ± 0.1% |
| Certification | CE, UL |
| Size | 17.5mm |
| Range | 9.99/99.9/999 Sec, 9.59 minsec, 99.9/999 min, 9.59 hr : min, 99.9/999 hr |
| Operating Modes | On Delay, Interval, Asymmetrical cyclic OFF first, Asymmetrical cyclic ON first, Cyclic equal OFF first, Cyclic equal ON first, Pulse output, Delay on break, Delay on make / break, Interval after break, Single shot, Retriggerable single shot, Latching relay, Delay on break with totalise, Interval with totalise |
| Resolution | 0.1 sec |
