Plug-N-Wire Multifunction Meters - MRJ

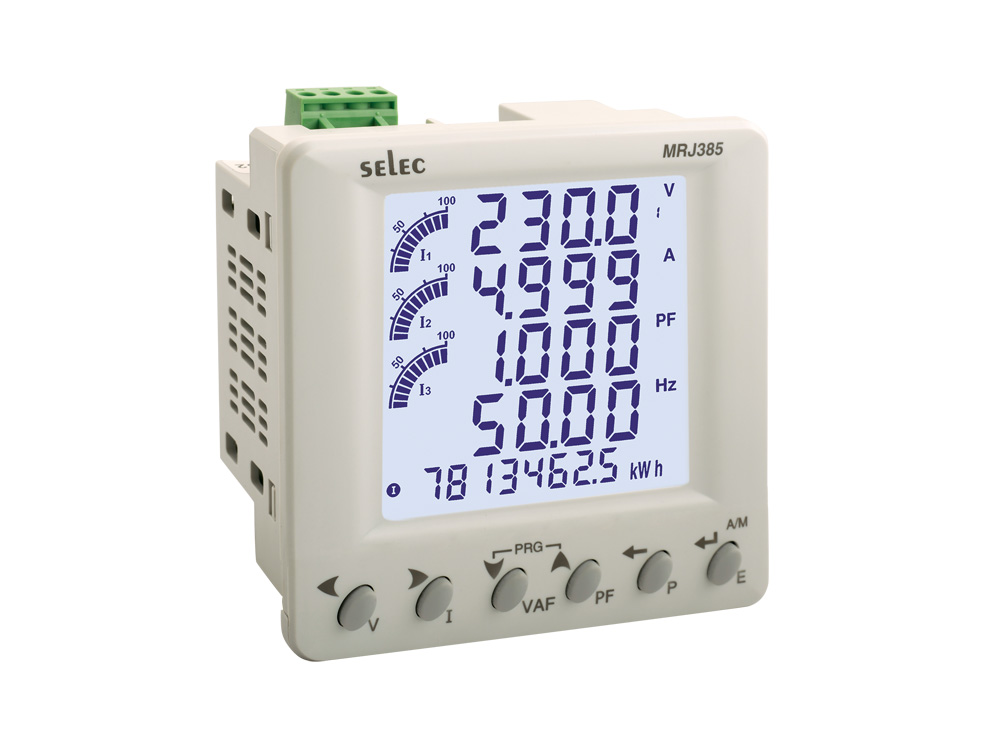

Selec MRJ385
Single Channel, Panel mount Multifunction Meter
Short Specs:-
- Compatible with 1 phase 2 wire, 3 phase 4 wire systems
- Bar-graph for current indication, Max / Min Demand measurement for Power, % THD up to 31st level for Voltage and Current
- Single Channel, Plug-n-wire current transformer input
- 100 to 240V (L-N), 173 to 415 (L-L) measurement
- Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, 1% for Power and energy, ±0.01 digit for PF
- ...view more

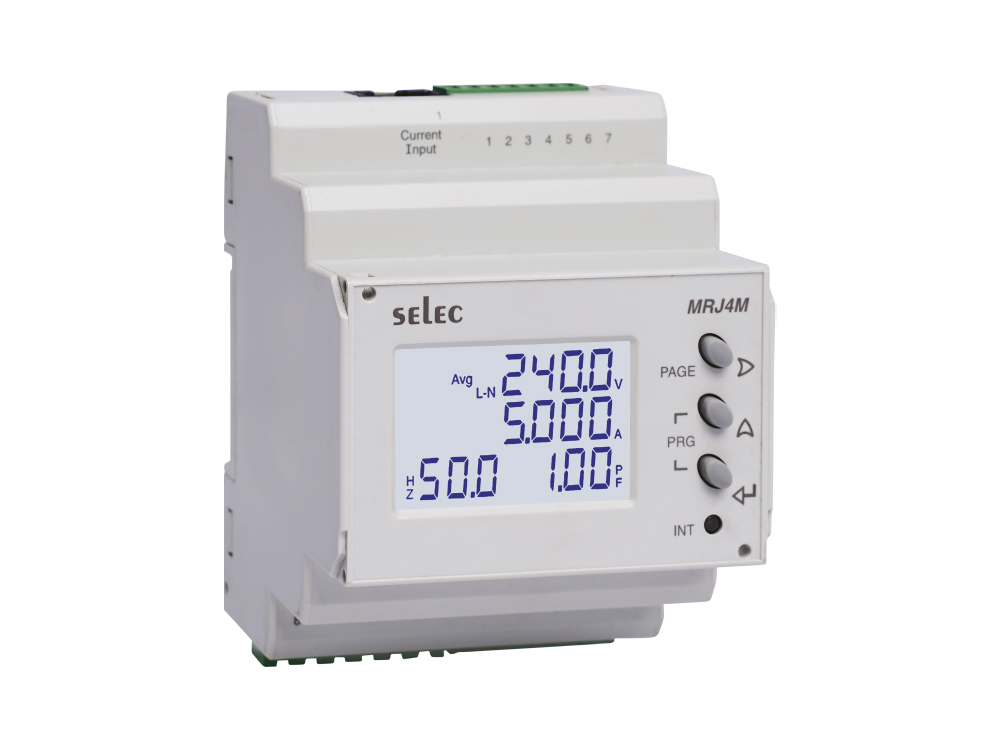

Selec MRJ4M
Single Channel, Rail Mount Multifunction Meter
Short Specs:-
- Compatible with 1 phase 2 wire, 3 phase 4 wire systems
- Single Channel, Plug-n-wire current transformer input
- 60 to 300V AC (L - N), 104 to 520V AC (L - L) measurement
- Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, ±1% for Power and energy, ±0.01 digit for PF
- Auxiliary Supply of 60 to 300V (L-N), Self powered
- ...view more

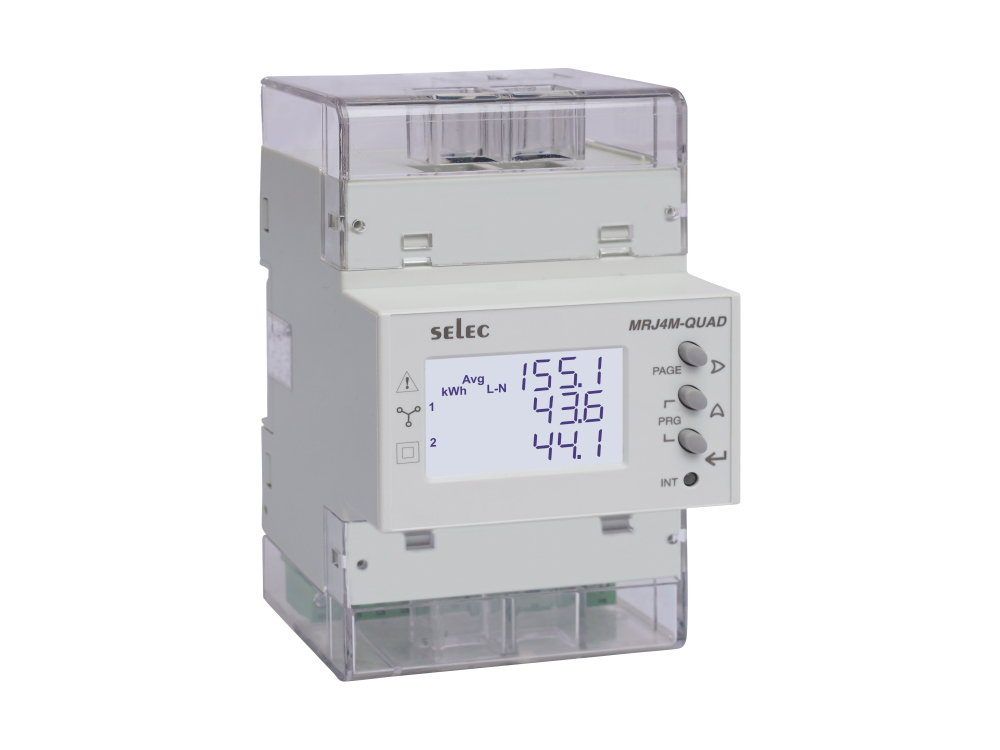

Selec MRJ4M-QUAD
Four Channel, Rail mount Multifunction Meter
Short Specs:-
- Compatible with 1 phase 2 wire, 3 phase 4 wire systems
- Four Channel, Plug-n-wire current transformer input Monitors Electrical Parameters for 4 loads (3Ø), 12 loads (1Ø)
- 60 to 300V AC, Self Powered (V1, N), (50/60Hz)
- Accuracy of ±0.05% for voltage & current, ±0.1% for Frequency, 1% for Power and energy, ±0.01 digit for PF
- Auxiliary Supply of 60 to 300V (L-N), Self powered
- ...view more
Selec MRJ4M-SL
Dual Channel, Rail mount Multifunction Meter
Short Specs:-
- Compatible with 1 phase 2 wire, 3 phase 4 wire systems
- Dual Channel, Plug-n-wire current transformer input
- 60 to 300V AC (L - N), 104 to 520V AC (L - L) measurement
- Accuracy of ±0.5% for voltage & current, ±0.1% for Frequency, ±1% for Power and energy, ±0.01 digit for PF
- Auxiliary Supply of 60 to 300V (L-N), Self powered
- ...view more
