Fixed IO Panel Mount PLC

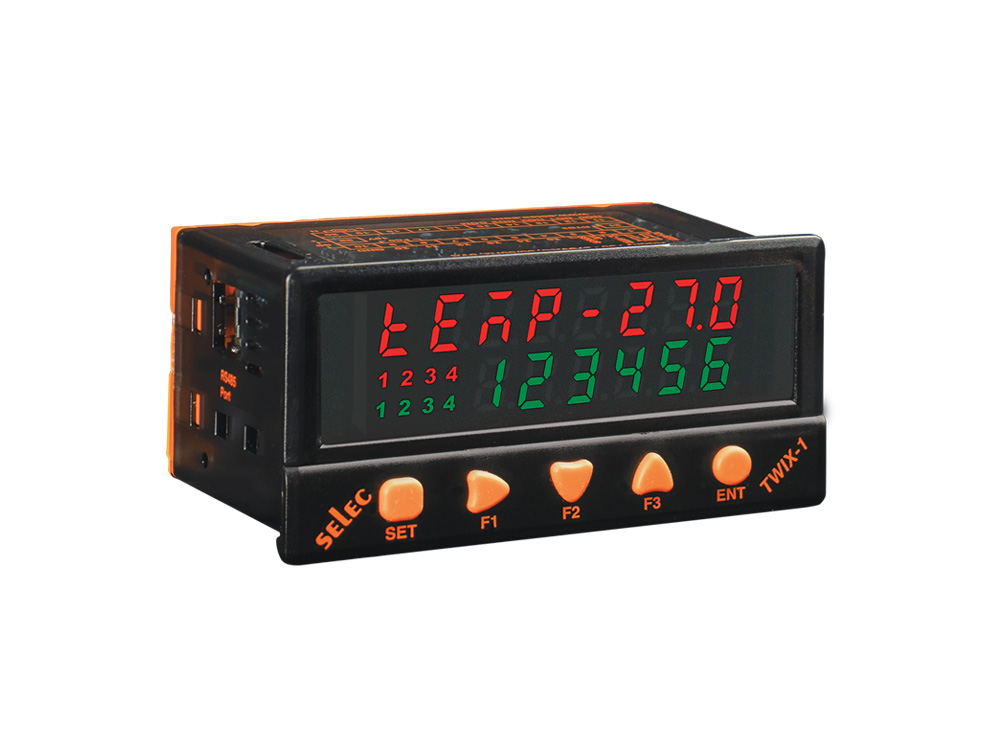

Selec TWIX-1
PLC WITH TEMP AI AND RELAY OP
Short Specs:-
- 48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 6 Digits Green Display with 5 Keys.
- 6 Digital Inputs, 4 Relay Outputs.
- 1 Channel Fast Input upto 5kHz.
- 1 Channel Analog Input of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD that can be configured through programming.
- Supply voltage : 90 to 270 VAC / 18 to 30 VDC
- ...view more

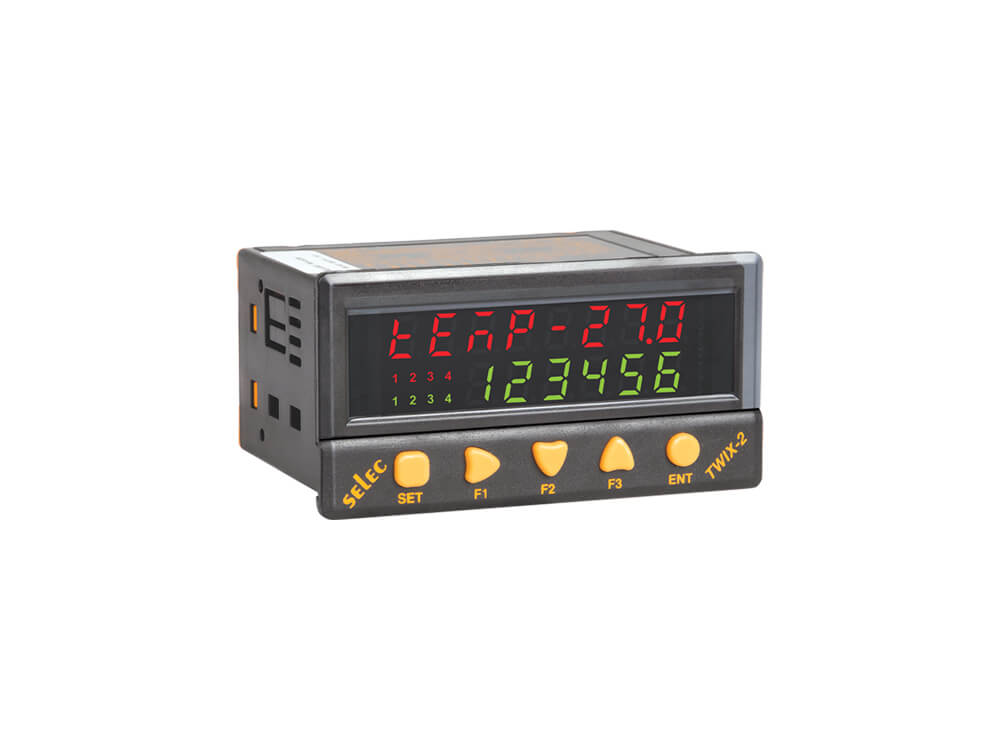

Selec TWIX-2
COMPACT PLC ANALOG AND DIGITAL IO
Short Specs:-
- 48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 4 Digits Green Display with 5 Keys.
- 6+2* Digital Inputs, 5 Relay Outputs
- 1 channel Fast Input upto 5kHz.
- 2 out of 8 Digital Inputs can be configured as 0-10V analog Inputs
- 6 channels of analog Inputs of 2 each channels of voltage (0-10VDC), Current (0-20mA) or TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD type 1 channel of Analog Output (0-10VDC) / (0-20mA).
- ...view more

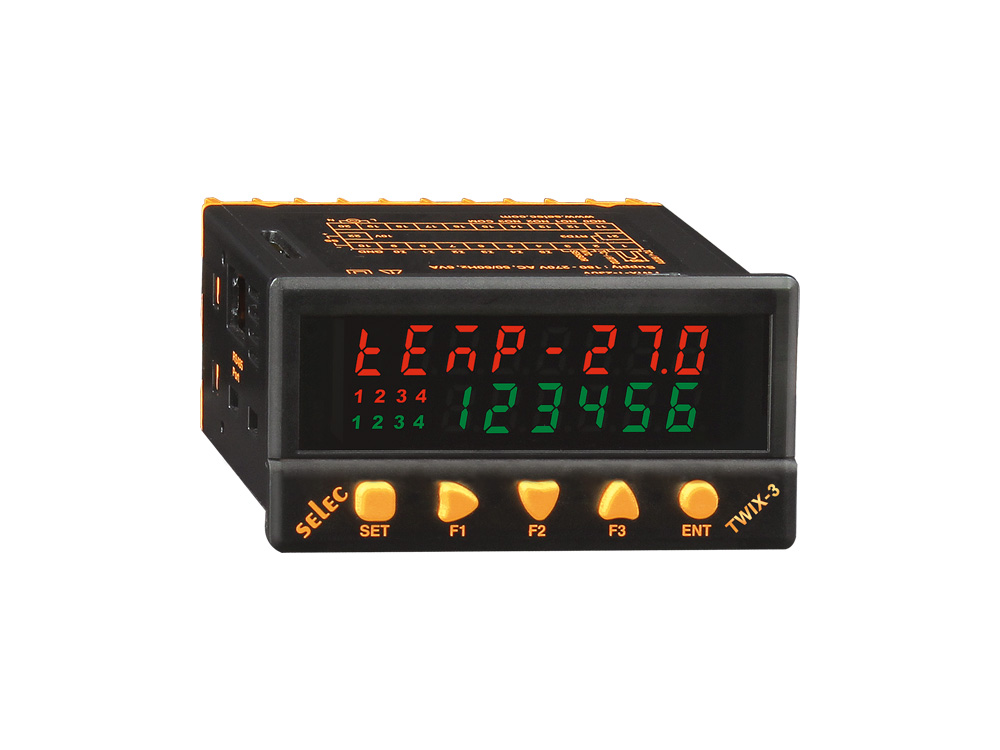

Selec TWIX-3
PLC WITH TEMP AI AND TRANSISTOR OP
Short Specs:-
- 48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 6 Digits Green Display with 5 Keys.
- 6 Digital Inputs, 4 Relay Outputs.
- 1 channel Fast Input upto 5kHz.
- 1 channel analog Input of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD that can be configured through programming.
- Supply voltage : 18 to 30 VDC
- ...view more

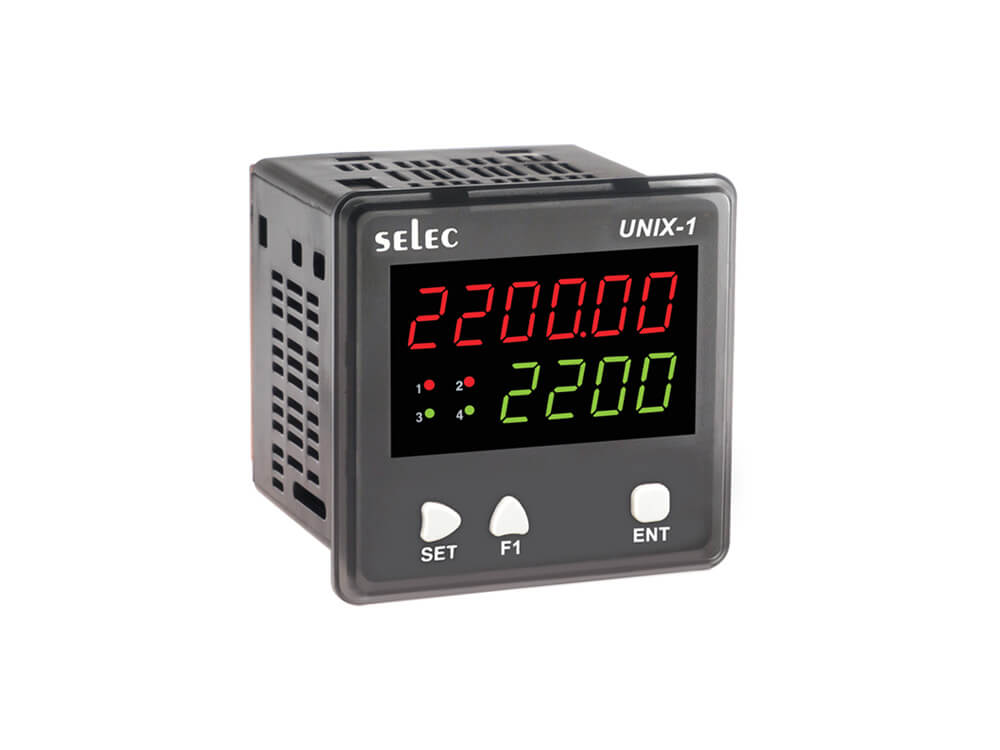

Selec UNIX-1
ECONOMICAL PLC WITH TEMP, CURRENT, VOLTAGE AI
Short Specs:-
- 72x72 size plc with 7 segment 6 digit Red and 4 Digit Green Display and 3 Keys.
- Product has 3+1* Digital Inputs, 2 relay Output and 2 transitor Outputs.
- 1 channel Fast Input upto 5kHz.
- One digital Input out of 4 can be seleced and used as 0-10V analog Input.
- One each analog Input channel of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD type, voltage (0-10VDC), current (0-20mA).
- ...view more
