Direct Measuring Energy Meters

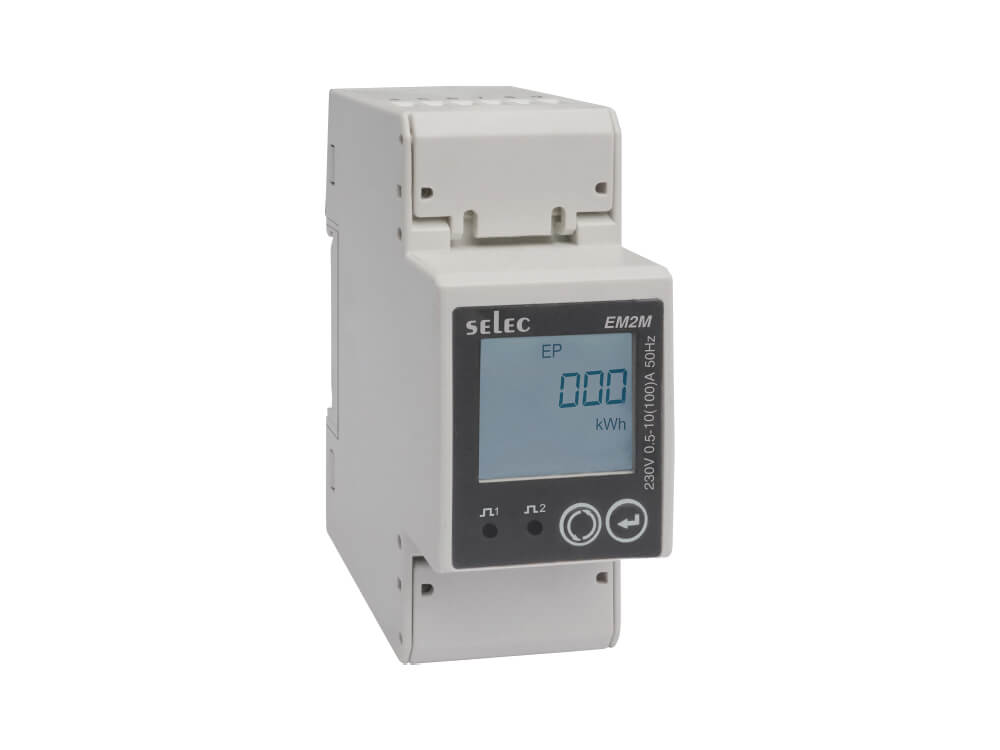

Selec EM2M
Single phase DIN RAIL Energy Meter
Short Specs:-
- Compatible with 1 phase 2 wire system, Self-Supplied
- 176 to 276V AC measurement.
- Direct current measurement up to 100A
- Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
- Two pulse outputs configurable for Import/Export Energy measurement RS485 Modbus communication, Mbus variant available CE, MID Certified

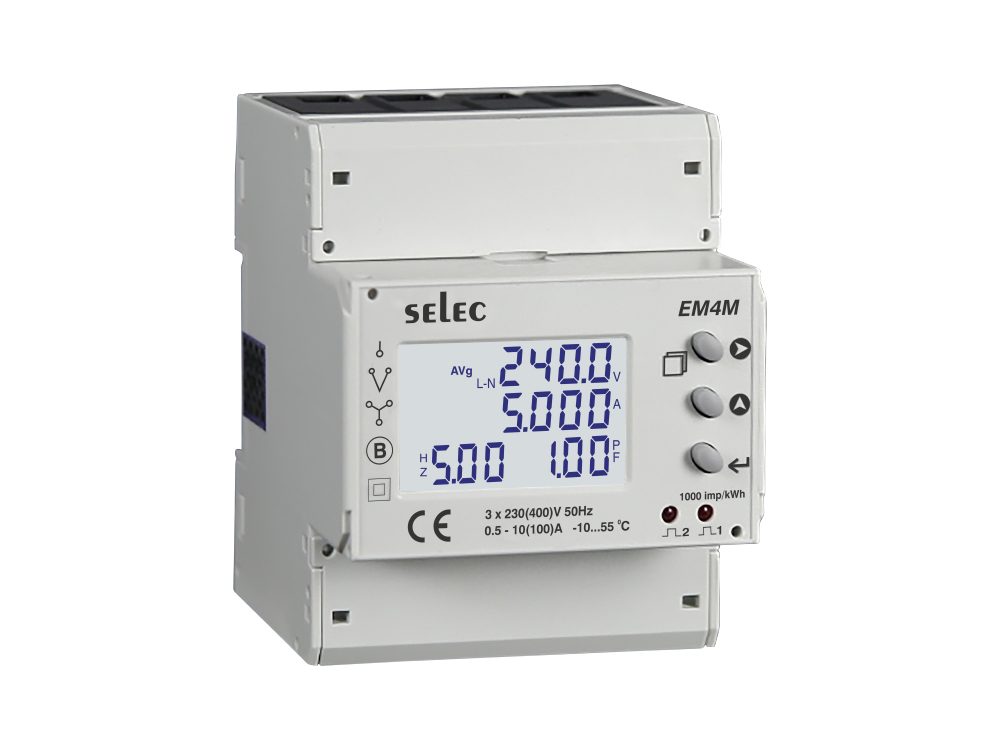

Selec EM4M
Three phase DIN RAIL Energy Meter
Short Specs:-
- Direct current measurement up to 100A, Dual-Input measurement
- Compatible with 1 phase 2 wires, 3 phase 3 wires, 3 phase 4 wires systems
- 85 to 285V (L-N), 120 to 494V (L-L) measurement , Self Supplied
- Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
- Two pulse outputs configurable for Import/Export Energy measurement
- ...view more
